Pioneer XDJ-RX3 Audio & MIDI settings?

[Jan_Van_den_Bossche1]

NOTE: Please use the search function above before posting to avoid creating duplicate topics.

• Device model (e.g. 2020 iPad Air 4th Gen): Macbook Air M4 2025 16GB RAM
• Version of operating system (e.g. macOS 14.4.1): 26.0.1
• Version of djay (e.g. 5.1.2): 5.5
• Hardware/controllers used (e.g. Reloop Mixon 8 Pro): XDJ-RX3

Your question/suggestion/feedback:

Hi,

the XDJ-RX3 is in Midi Mode and all seems to be communicating well, I see my cue points on the hardware buttons and I can sync and press play

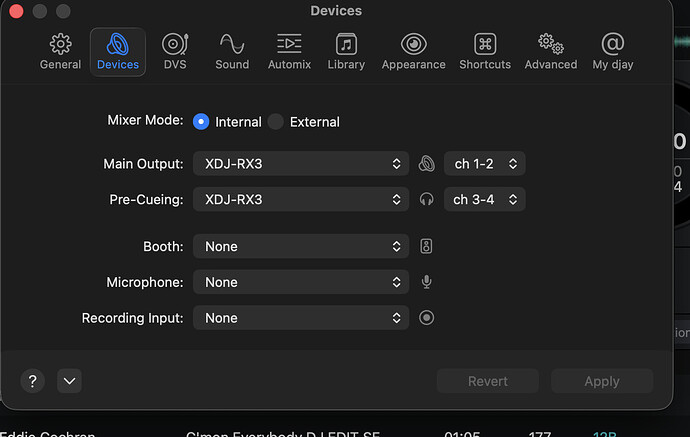

But I am messing around with the internal/external mixer mode settings in djay pro.
I have tried all different options, but no steady result. At the moment I am hearing the song from deck 2 on both faders of the RX3. And pre-cueing through headphones in the RX3 is not working.

What are the settings I need to apply?

Jan

[Armigo]

Delete any midi mappings you created for RX3 and use the default.

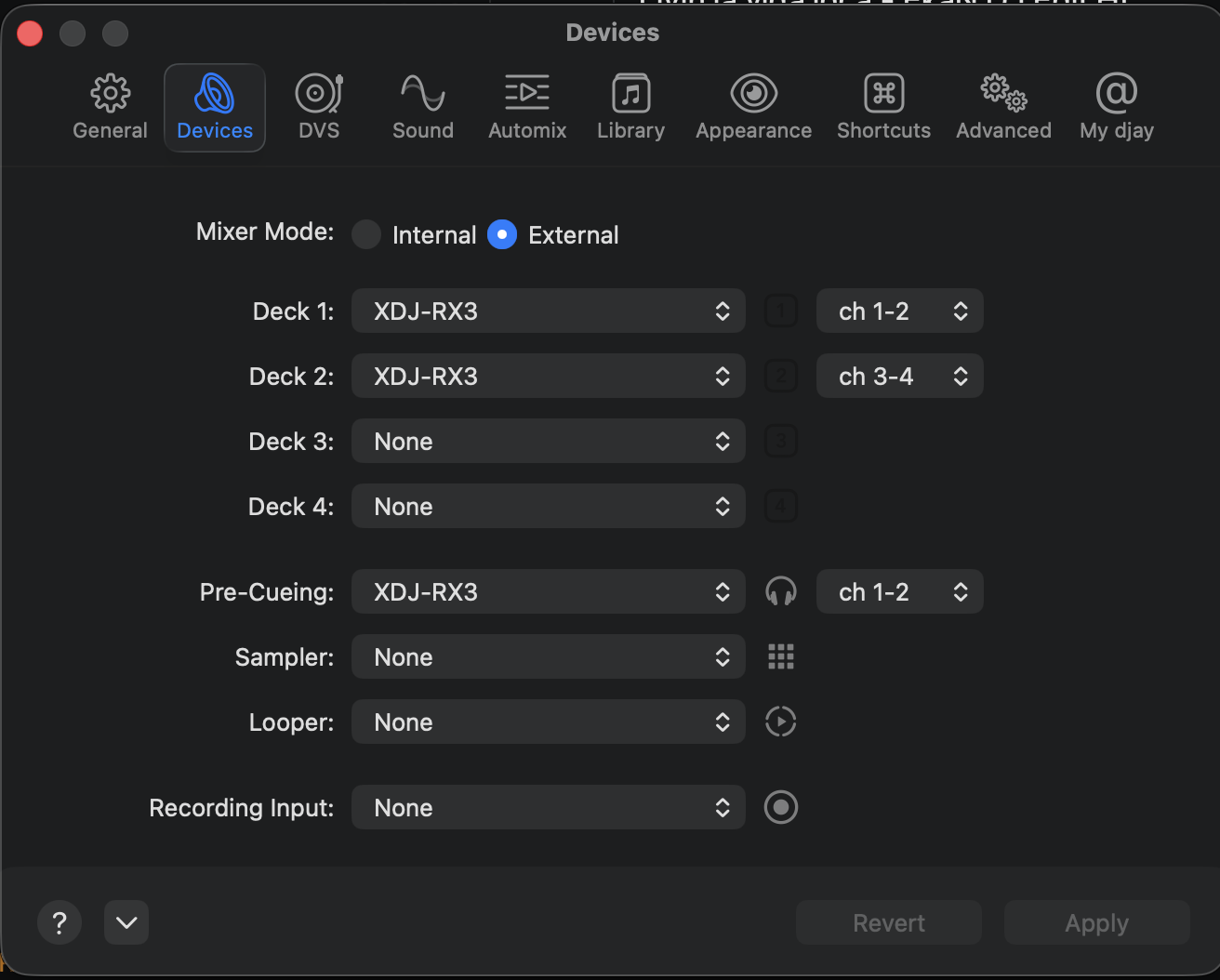

Reset audio settings to default (Click drop-down arrow on Left bottom corner of screenshot).
Should work fine in one of those modes (I would try internal mixer first).

[Slak_Jaw]

Hi @Jan_Van_den_Bossche1, please also note that the RX3 is an External Mixer Mode Device and must be used in External Mode not Internal Mode.

[Slak_Jaw]

Thanks for the help @Armigo
