Neural Mix MIDI mapping

[Yan]

Mac os sonoma puce M1

Hi eveverybody

YOUR QUESTION:

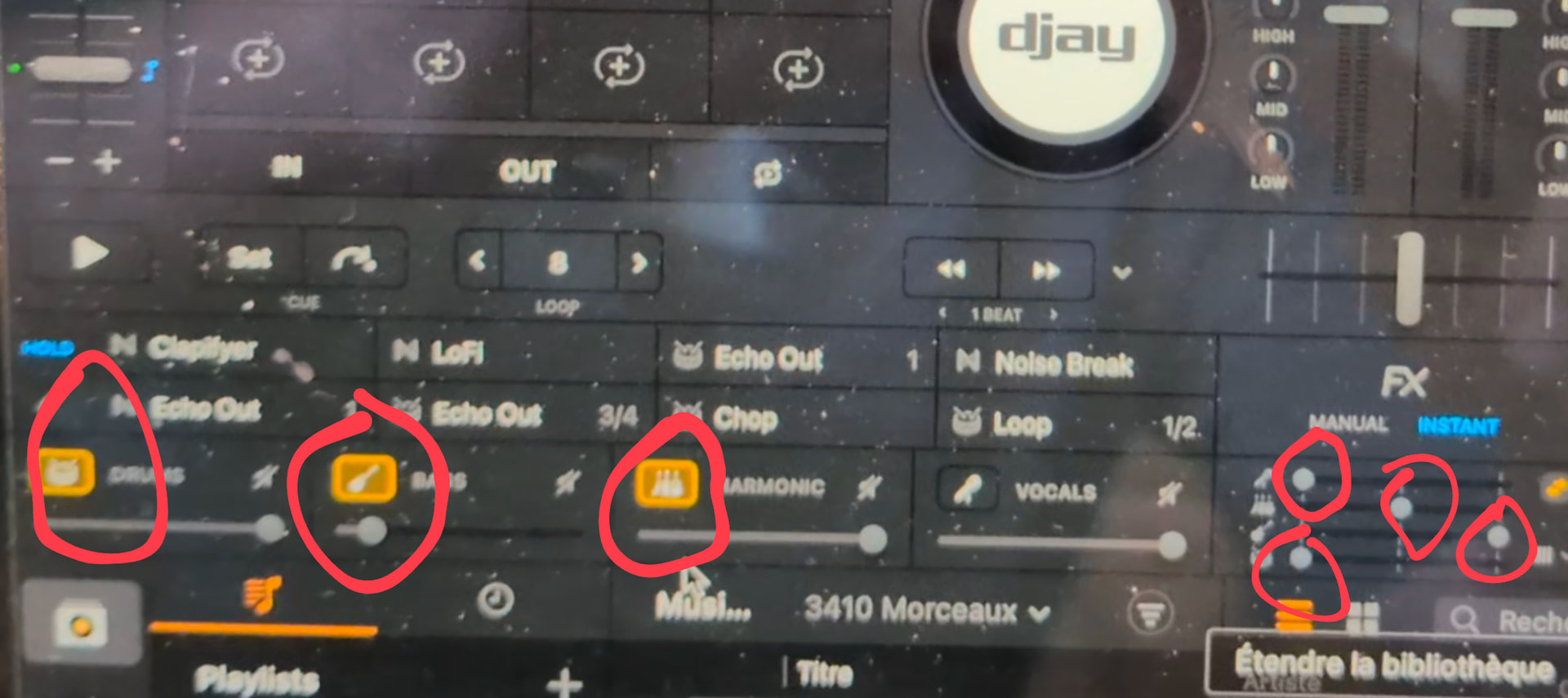

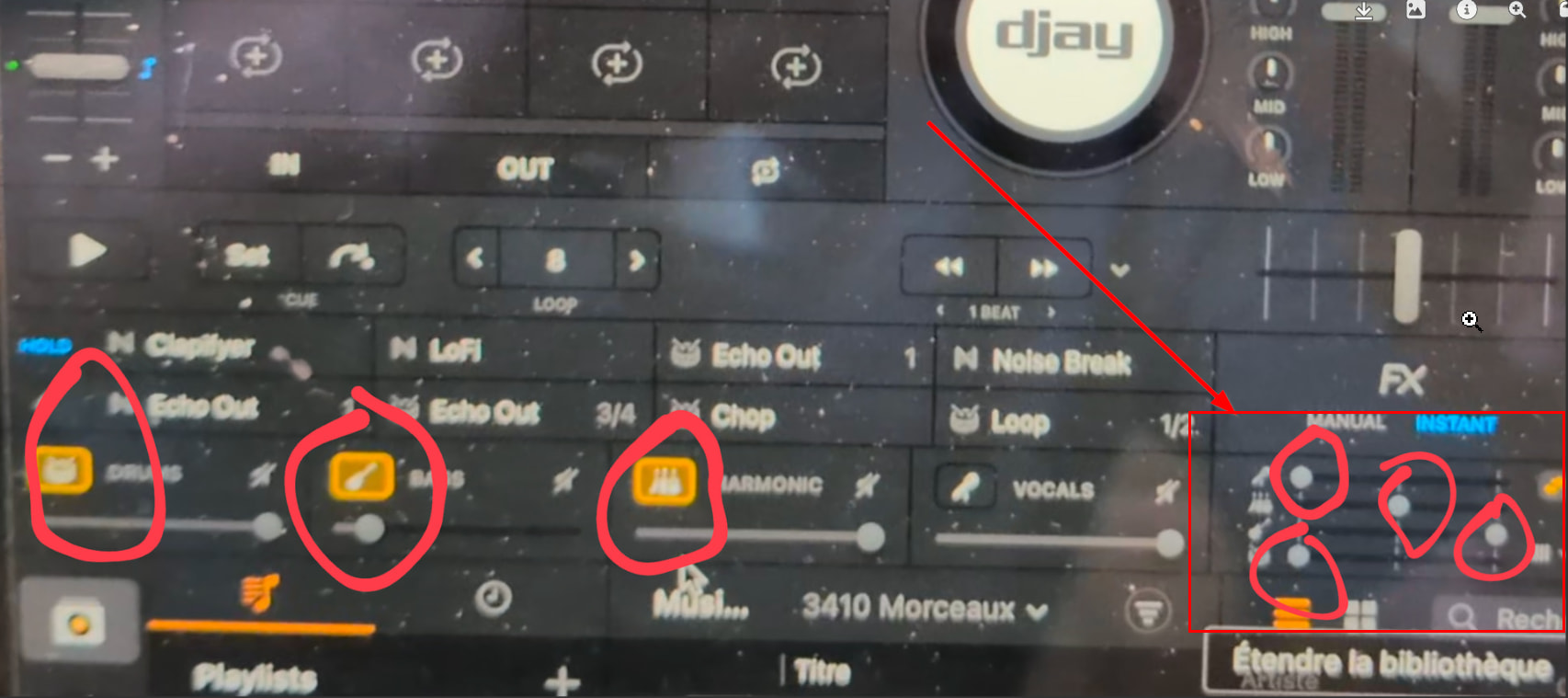

1. I want to midi map neural mix action ( look to the red line on the picture)

2. Is it possible to put this action on knob of deck 3 and 4 ?



Thanks for your help

[Slak_Jaw]

Hi @Yan, yes, all of these Neural Mix controls can be mapped to unused knobs of Deck 3 and 4.

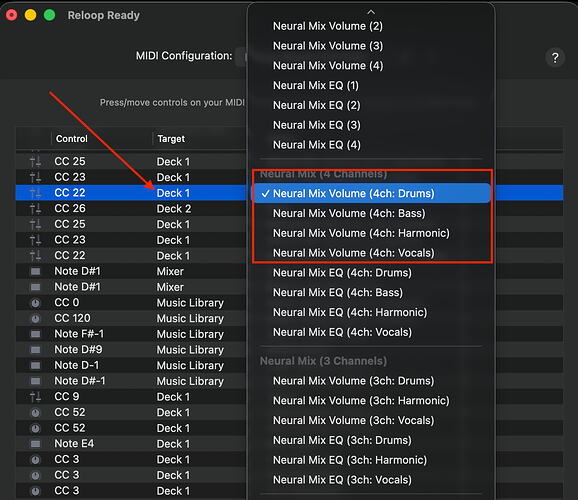

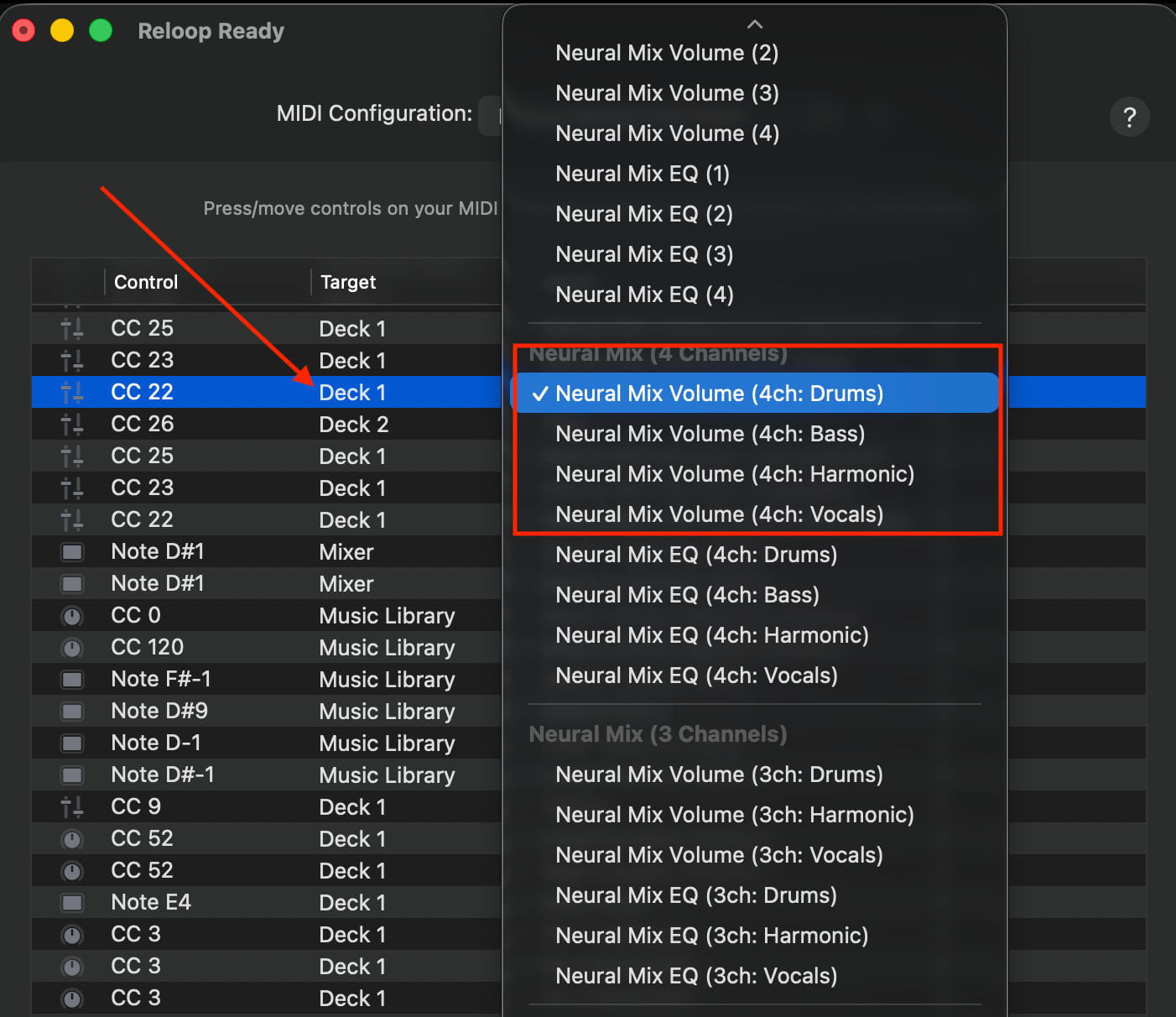

1. The controls circled on the left side of your image are for Neural Mix Volume. For these, make sure you set the Target>Deck 1 and Target>Deck 2.


2. The controls circled on the right side of your image are for Neural Mix Crossfader. For these, make sure you set the Target>Mixer.



For more info on how to MIDI map on macOS, please refer to the linked section below from the User Manual:

Mapping a MIDI device | Algoriddim Support

[Yan]

Thanks but i just want to kill or to “use” each individual element not to adjust the volume. Like if you are clicking the drum button with the mouse and it become yellow.

I am not using the physical fader ( disfunction) may i midi map these fonction on knobs : for example Moving drums from deck 1 to deck 2 , at the same time moving harmonics from deck 2 to 1 etc

[Slak_Jaw]

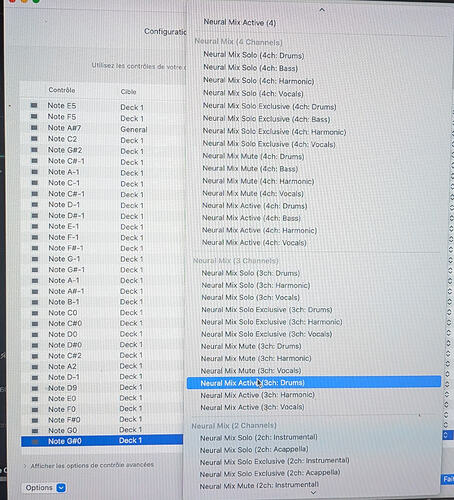

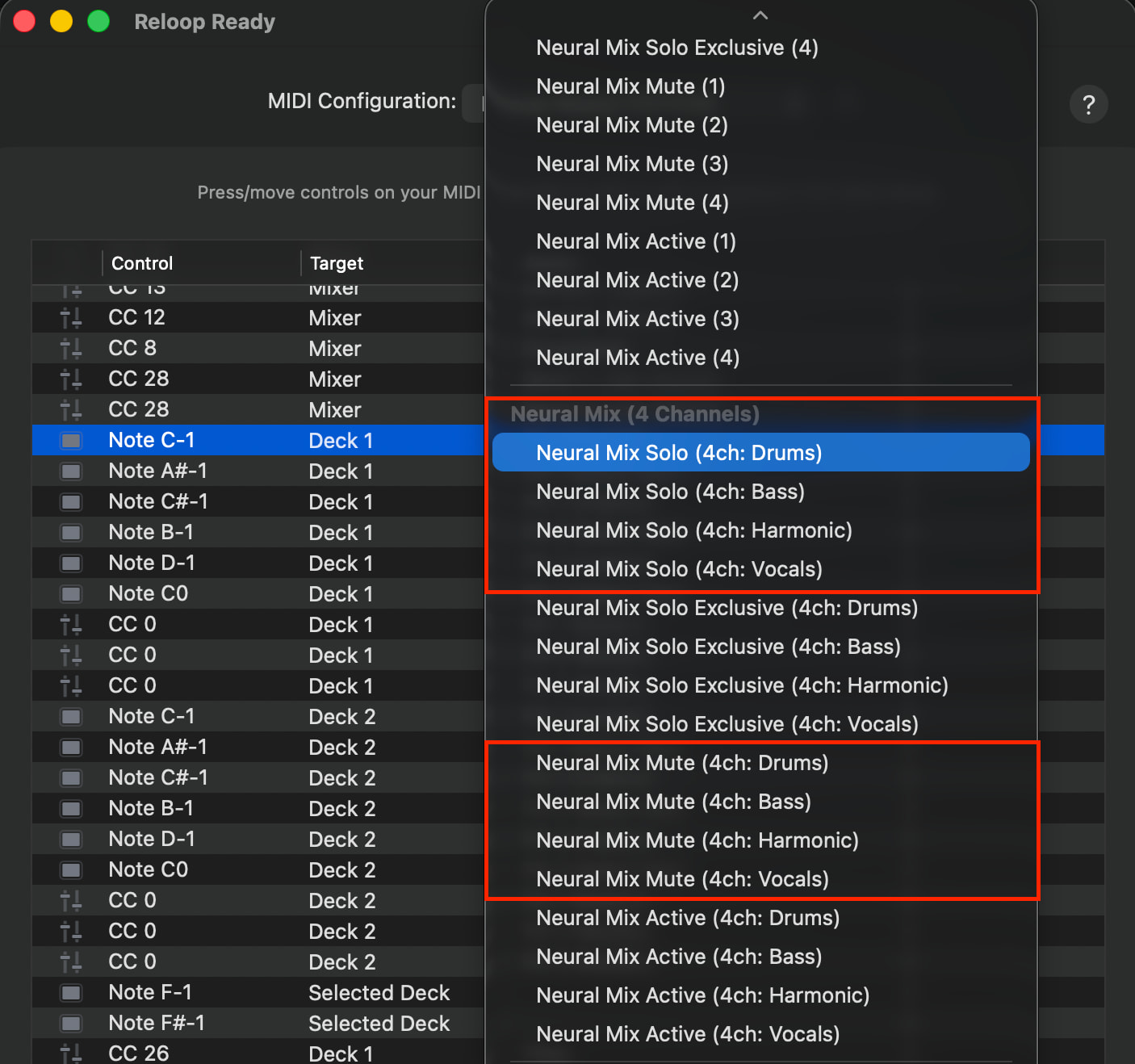

Okay, thanks for clarifying @Yan. Then the MIDI commands you are looking for are one of the following:

1. Neural Mix Solo: This will Solo the selected NM Part and mute the remaining 3.
2. Neural Mix Mute: This will Mute the select NM Part while keeping the other 3 playing.


3. Yes, you can MIDI map the Neural Mix Crossfaders to a fader or a knob. They work in a similar way.

[Yan]

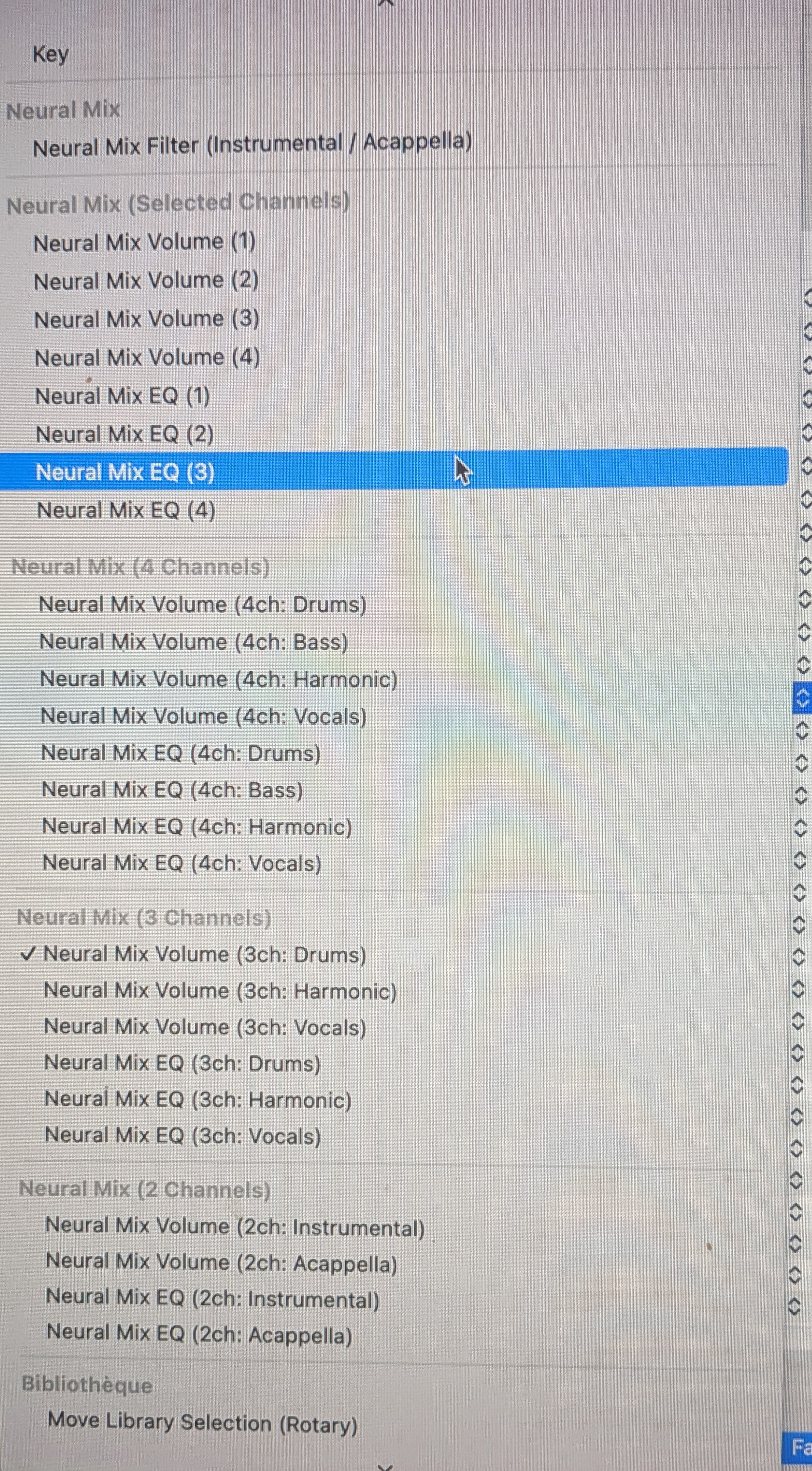

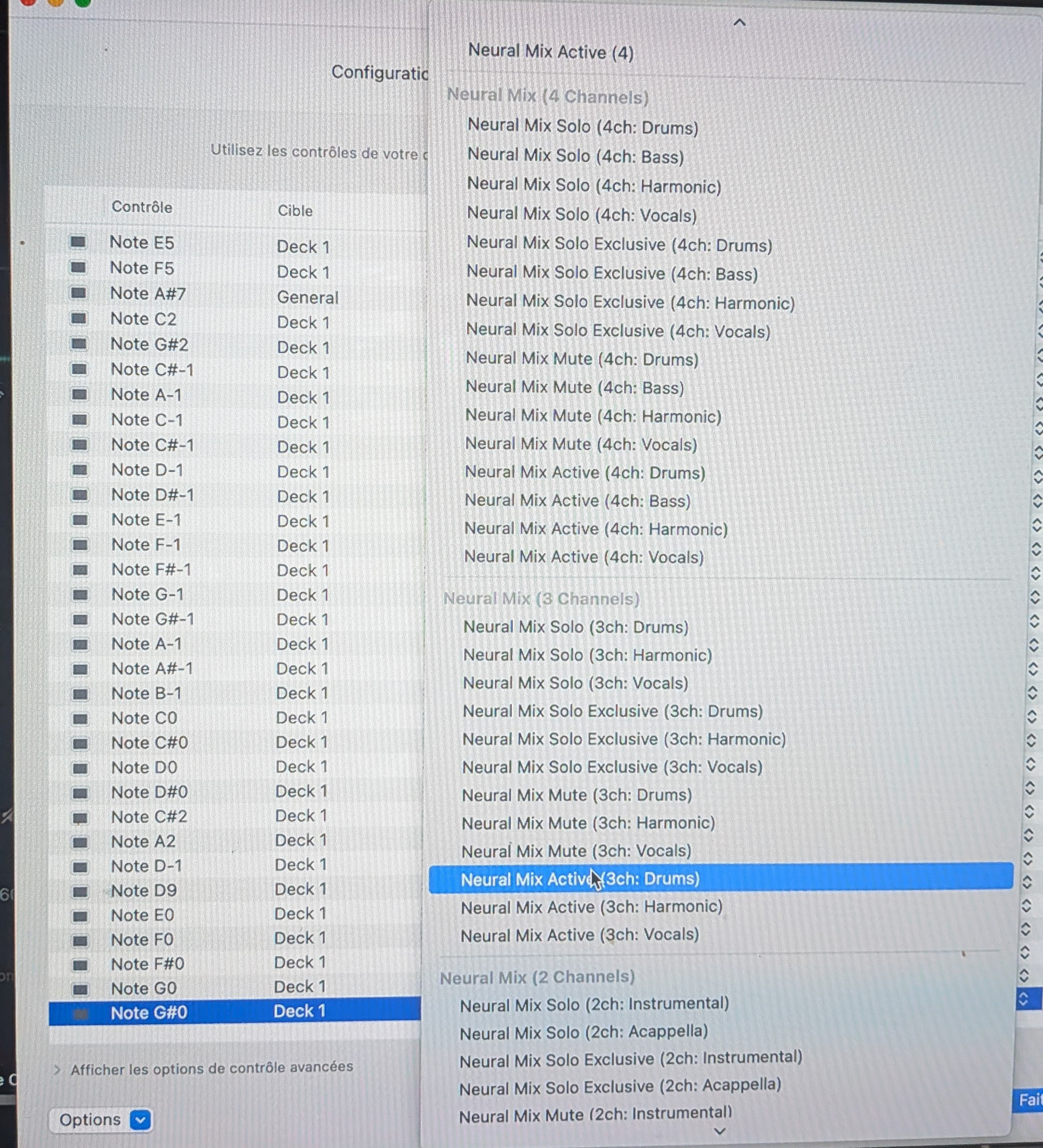

Neural mix midi menu are different between Knobs and button

Additionnal question what is fx routing ?

Thanks

[Slak_Jaw]

Please see my earlier message above. For the Neural Mix Crossfader, you need to set the Target to Mixer to see the commands

[Yan]

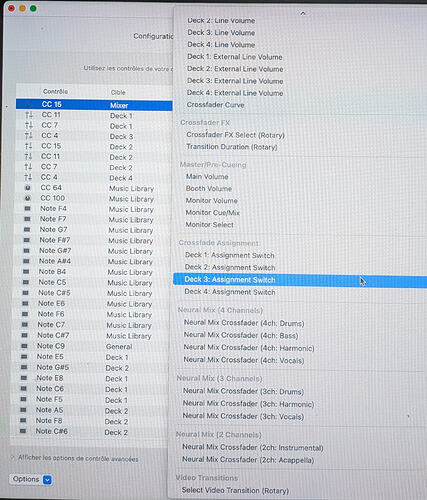

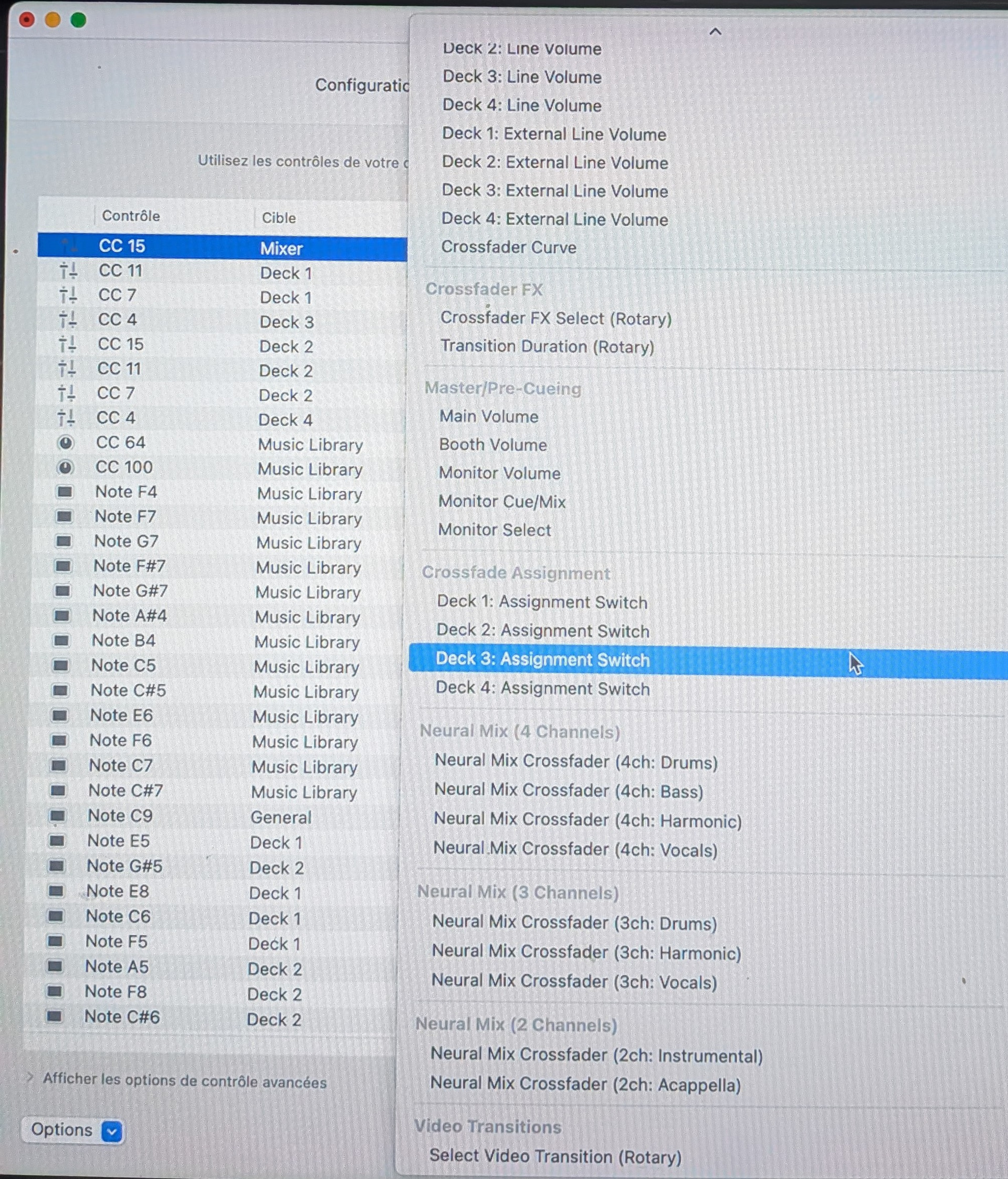

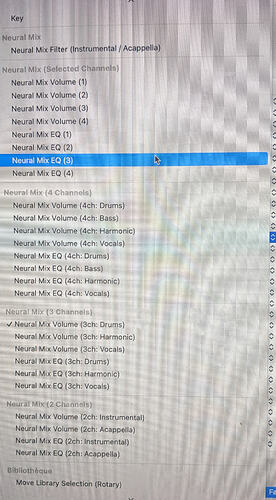

Sorry but on knobs with mixer i’ve got only this:

[Slak_Jaw]

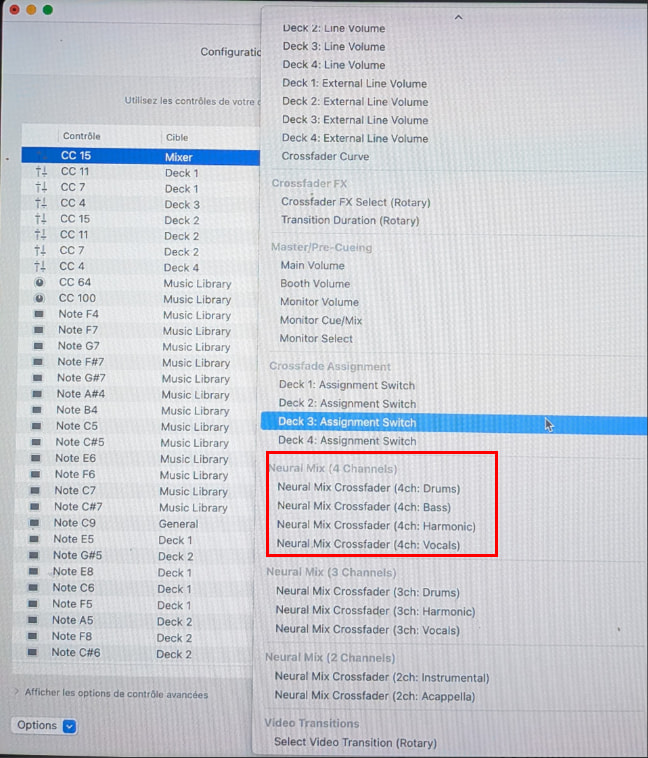

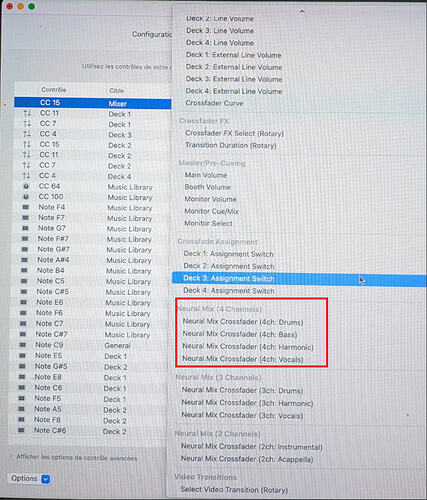

The Neural Mix Crossfader is shown in your screenshot:

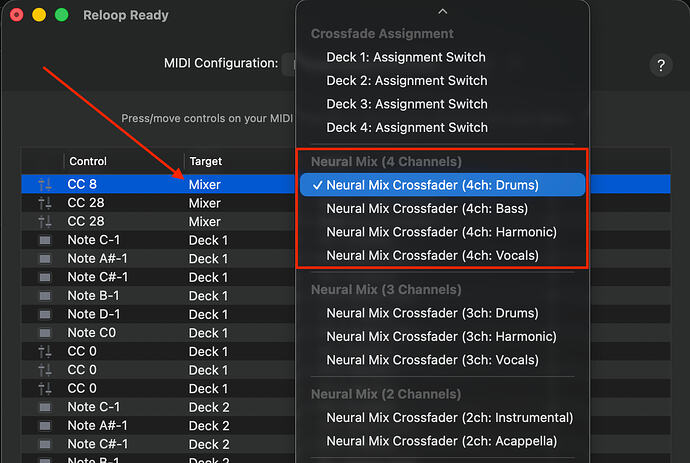

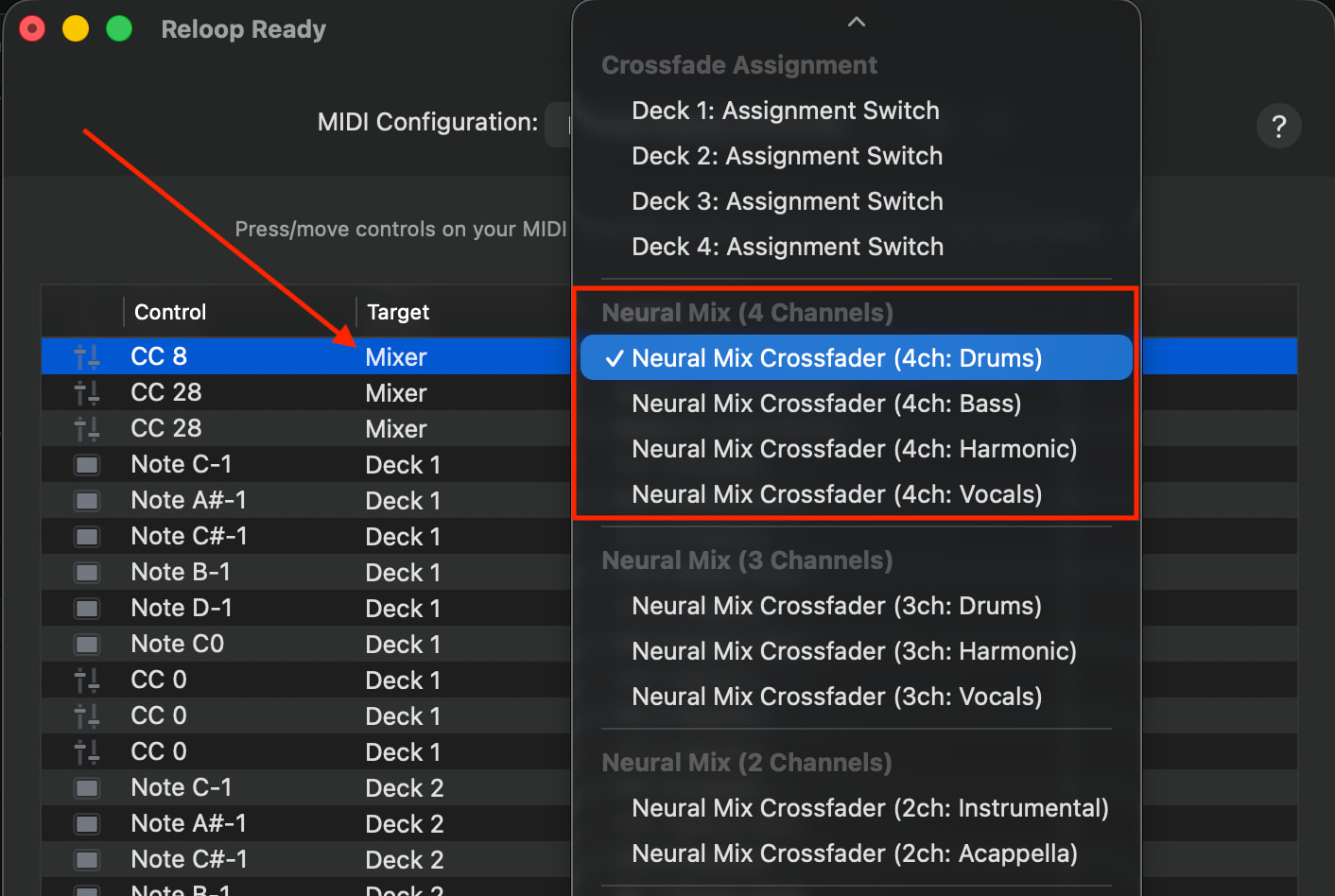

These are the MIDI commands for the controls on the right side of your first screenshot:

[Yan]

You’ve got a tough job dealing with people like me. I pick things up quickly, but you have to spend ages explaining them to me. I am sorry for my poor english i made a mix of diffrrent answer

Is it possible to keep my physical crossfader off?

My physical crossfader turn on with neural mix crossfader

Nothing happen in the music when i am moving the neural mix crossfader

[Slak_Jaw]

Hi @Yan, maybe you can try to clarify what is happening and what you want with a short screen recording or video?

[Slak_Jaw]

Hello! It’s been a week since my last reply. I’m going to consider this topic completed for now so I can focus on others. However, please feel free to respond and we can definitely revisit this. Thanks!
